SYSTEM 8 Multiplexed Matrix Switch (MMS)

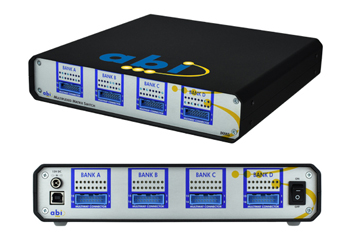

The ABI Multiplexed Matrix Switch (MMS) is a 16x16 matrix interface that offers 256 cross points to connect any channel to any channel, with up to 16 unique paths at a time. The MMS can also be used as multiplexer or de-multiplexer and is an economical alternative to automate low to medium volume test requirements.

Designed to work exclusively with ABI's range of test instruments, the MMS can deliver high-level results without the need for programming and for a fraction of the cost of a traditional ATE, PXI or LXI instrumentation. Multiple test solutions can be easily set up for high channel count applications.

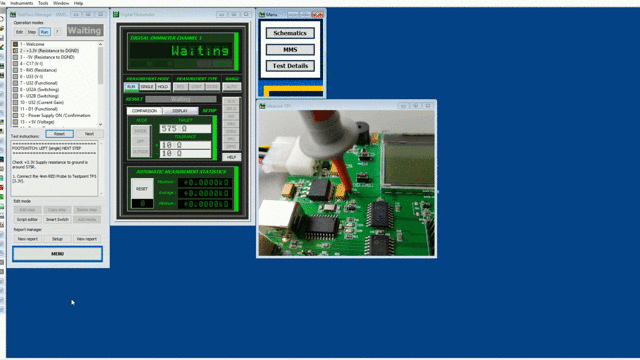

The MMS provides users with the ability to create semi or fully automatic test sequences powered by ABI's exclusive TestFlow Manager.

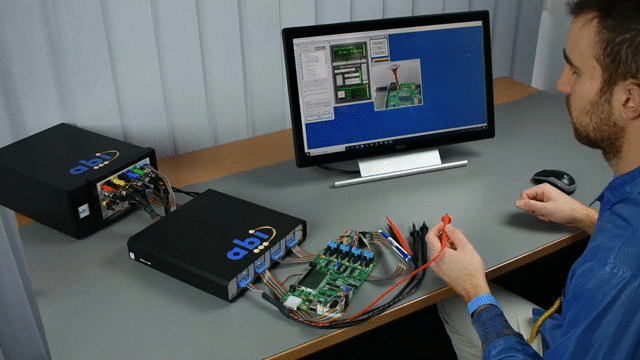

Semi automatic test sequence

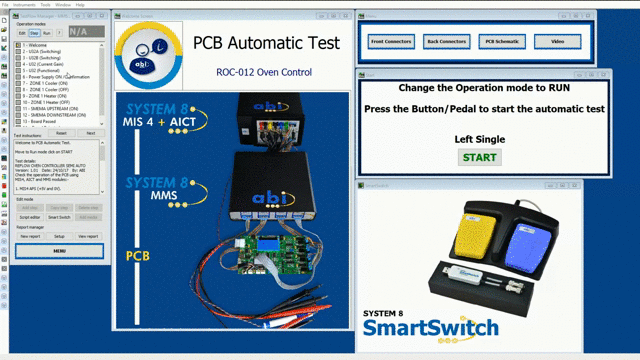

Fully automatic test sequence

The MMS combines the power of ABI's Ultimate software and the SYSTEM 8 Range of modular test instrumentation to provide a unique solution for the following applications:

low to medium volume functional test on components and complete assemblies
signal routing for design verification and data acquisition requirements
automatic measurement and comparison of signals from up to 64 points on a circuit
