SYSTEM 8 BoardMaster Accessories

Configure your ABI test system for different components, packages and working methods. Our range includes programmable test controls, training equipment, test clips, hands-free probes and out-of-circuit adapters.

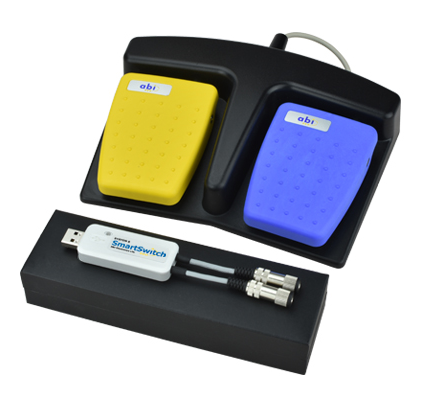

SYSTEM 8 SmartSwitch

SYSTEM 8 SmartSwitch is a programmable two-channel USB interface that supports up to four switch inputs. It allows operators to control ABI BoardMaster instruments and TestFlow procedures using foot switches, hand switches, safety buttons, conveyors or compatible sensors.

Designed exclusively for ABI SYSTEM 8 Ultimate software and test equipment, SmartSwitch helps technicians keep their hands and attention on the circuit under test.

Key Benefits

  • Trigger measurements while keeping probes correctly positioned.
  • Start or stop data acquisition without returning to the mouse.
  • Control compatible SYSTEM 8 instruments and TestFlow procedures.
  • Create, save and recall frequently used configuration profiles.
  • Record SmartSwitch settings within repeatable TestFlow procedures.

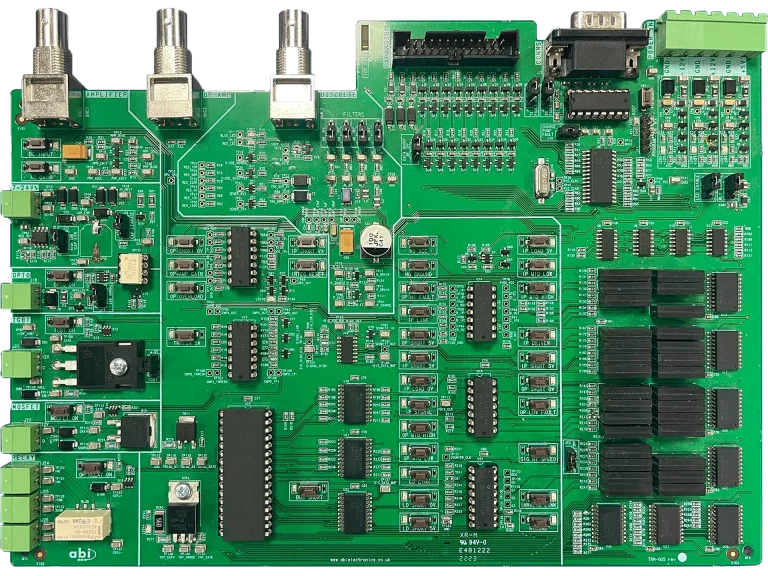

SYSTEM 8 Training Board

The SYSTEM 8 Training Board is a practical learning platform for BoardMaster. It helps operators develop experience with BoardMaster’s AMS, ATM, BFL, AICT and MIS modules using controlled analogue and digital circuit conditions.

With more than 150 learning functions, the board supports equipment training, fault-diagnosis practice and the development of transferable PCB testing skills.

Key Features

  • More than 150 learning functions
  • Analogue and digital fault-diagnosis exercises
  • Waveform and signal comparison
  • PIC-controlled operation
  • Automatic calculations
  • Training TestFlows and supporting documentation

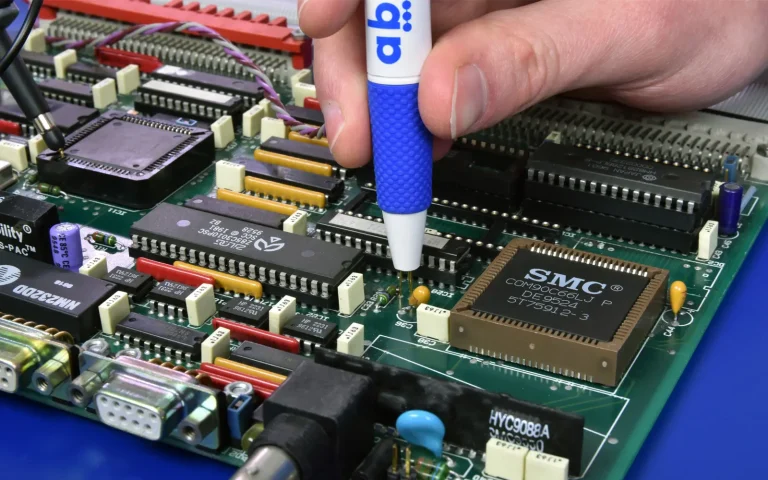

PenProbe Set

Make probing DIL and SMT discrete devices effortless. Spring mounted pins ensure good contact on even the smallest, hard to reach components.

  • Type 1,3 pin (SOT 23 and similar)
  • Type 2,3 pin (TO72 and similar)
  • Type 3,3 pin (TO220 and similar)
  • Type 4,3 pin (TO92 and similar)
  • Type 5,3 pin (SOT-323 and similar)

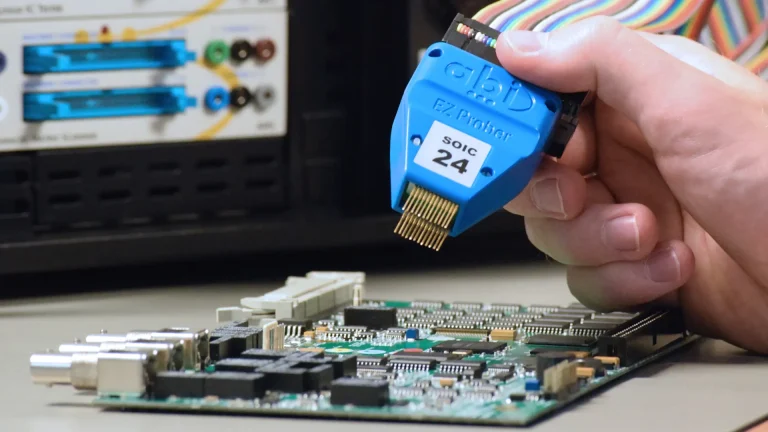

EZ Prober

A unique solution for probing surface-mount components that ensures good device contact to guarantee valid results.

  • 16 pins, 5.5mm gauge, 1.27mm pitch,
  • 28 pins, 10mm gauge, 1.27mm pitch,
These are our standard sizings, the EZ Prober can be customised to suit your applications.

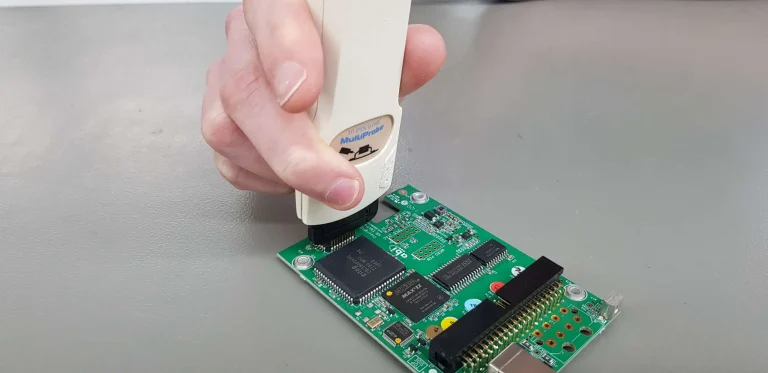

MultiProbe Cable

Multiprobes are an ideal option when it’s difficult to gain access to an IC or connector. With a single hand, it is possible to capture up to 8 or 10 pins.

  • 10 pins SOIC/PLCC, 1.27mm pitch,
  • 8 pins DIL, 2.54mm pitch,

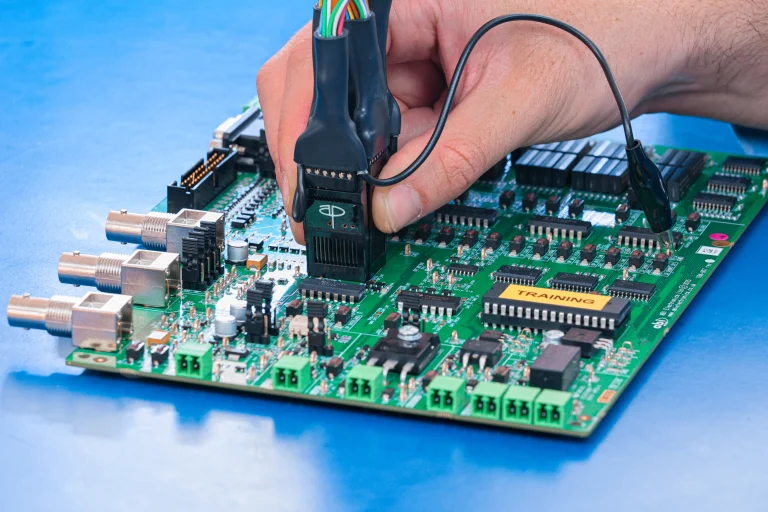

PLCC Test Clips

Connect compatible BoardMaster modules to different PLCC package IC sizes. Clip and cable assemblies are available for a range of pin configurations.

  • 20 pin clip & assembly
  • 28 pin clip & assembly
  • 44 pin clip & assembly
  • 52 pin clip & assembly
  • 68 pin clip & assembly
  • 84 pin clip & assembly

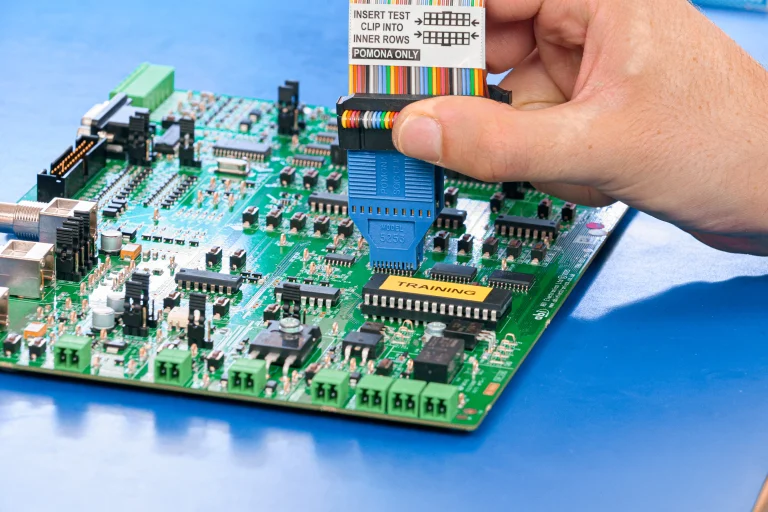

SOIC Test Clips

Test digital ICs in SOIC packages using compatible clip and cable assemblies for the BoardMaster BFL and ATM modules.

  • 8 pin narrow clip & assembly
  • 14 pin narrow clip & assembly
  • 16 pin narrow clip & assembly
  • 20 pin clip & assembly
  • 24 pin clip & assembly
  • 28 pin clip & assembly

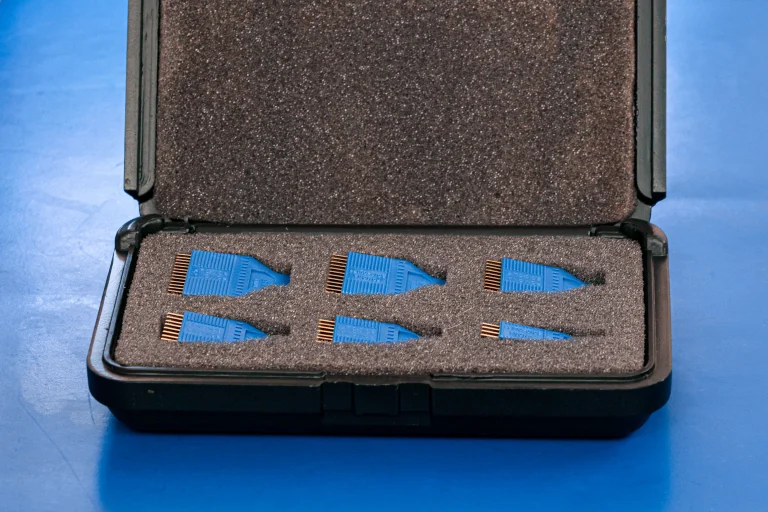

SOIC Test Clip Set

Connect compatible BoardMaster analogue test modules to ICs in commonly used SOIC package sizes.

  • 8 pin narrow test clip
  • 14 pin narrow test clip
  • 16 pin narrow test clip
  • Cable assembly

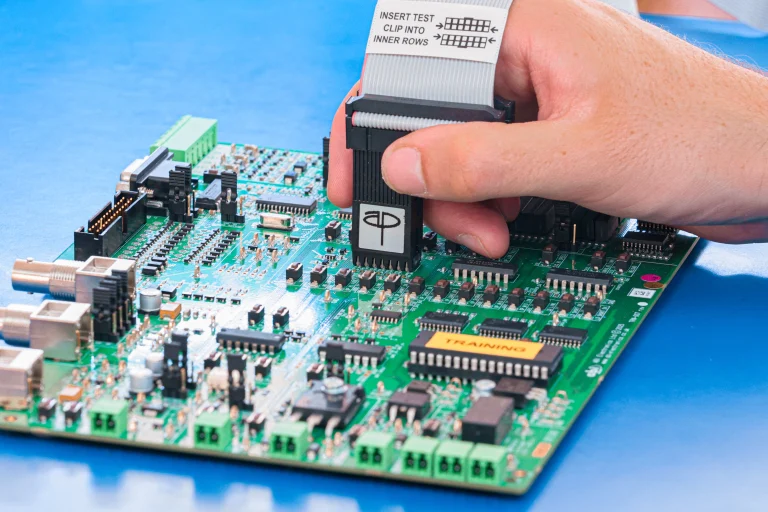

DIL Test Clip Sets

Connect BoardMaster’s ATM, BFL, AICT and AMS modules to a range of standard dual-in-line IC packages using robust test clips and cable assemblies.

  • 0.3″ gauge DIL test clip set consisting of 8, 14, 16, 20, 22 and 24 pin test clips
  • 0.6″ gauge DIL test clip set consisting of 22, 24, 28, 32, 40 and 64 pin test clips
  • Complete DIL test clip set

Handsfree Probes

Two SQ10 hands-free probes, one positive and one negative, supplied with banana cables for direct connection to a compatible multimeter or power supply. Different configurations available on request.

  • 2x SQ10 probes and pin tipped test needles
  • 2x Banana to dupont test wires (red/black)
  • 1x Set of cable holders (red/black)
  • 2x Extra test needles

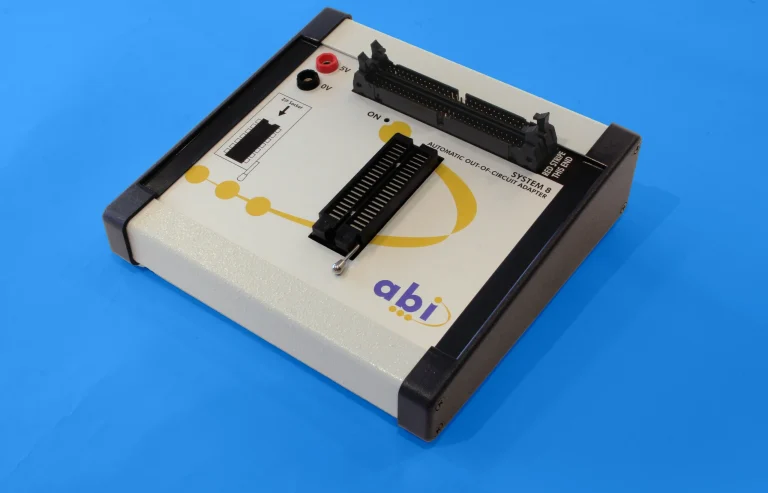

Out of Circuit Adapter

Test compatible SOIC and PLCC devices away from the PCB, removing the influence of surrounding circuit components. Push-Pop (P/P) and Clam-Shell  (C/S) adapter options are available for different package sizes.

  • 16 pin narrow SOIC adapter
  • 16 pin JEDEC SOIC P/P adapter
  • 16 pin EIAJ SOIC P/P adapter
  • 20 pin PLCC P/P adapter
  • 20 pin PLCC C/S adapter
  • 28 pin PLCC to 24 P/P adapter
  • 28 pin PLCC to 28 C/S adapter
  • 28 pin PLCC P/P adapter
  • 28 pin PLCC C/S adapter
  • 28 pin wide SOIC adapter
  • 28 pin SOIC P/P adapter
  • 32 pin PLCC P/P adapter
  • 32 pin PLCC C/S adapter
